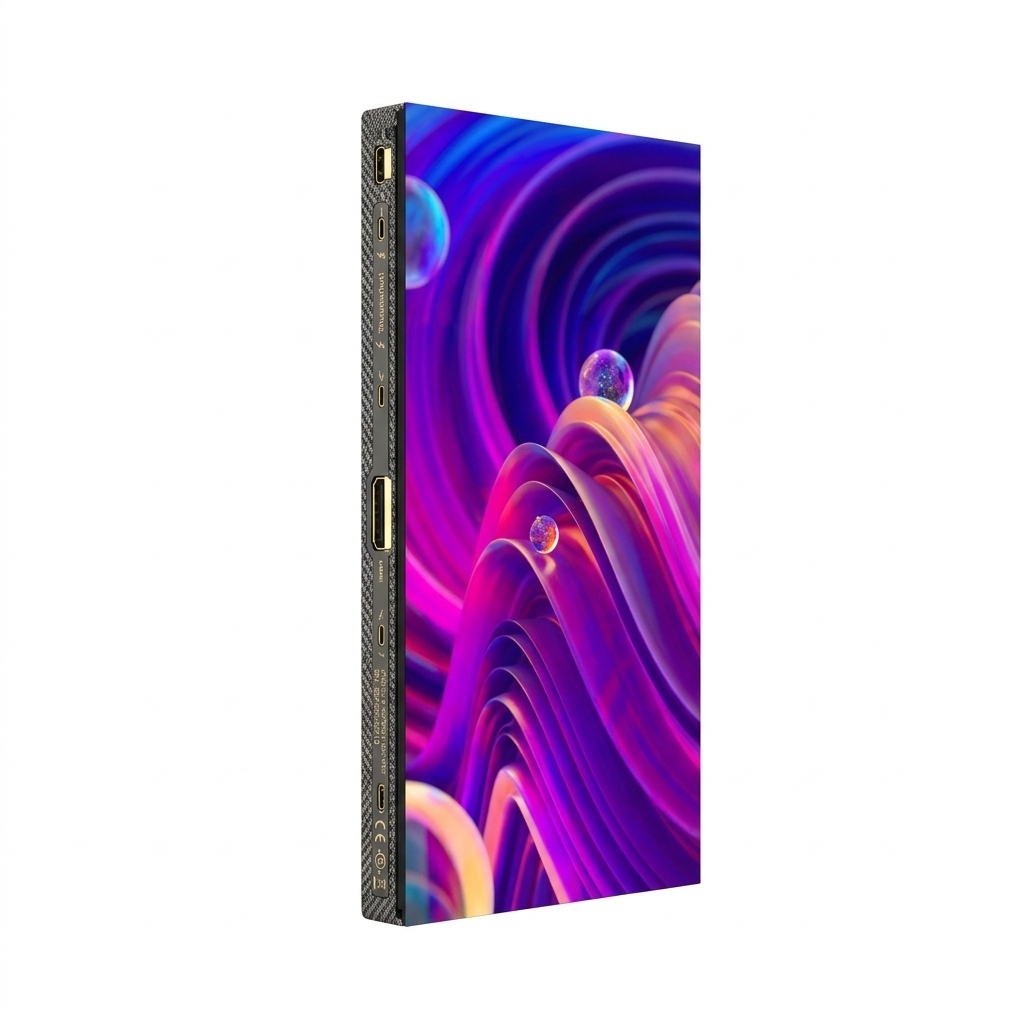

Hikvision Outdoor LED Display Modules (Professional Series)
-
High-Durability Protection: Engineered with IP65/IP67-rated ingress protection to withstand harsh environmental conditions, including heavy rain, dust, and moisture.
-
Superior Visual Clarity: Features high brightness (up to 6000 nits) and high-contrast SMD LED technology to ensure vibrant, readable content even under direct sunlight.
-
Seamless Splicing: Precision-engineered aluminum cabinet frames with 45° corner-cut capabilities support seamless 90° right-angle installation for creative, immersive displays.
-
Advanced Thermal Management: Innovative aluminum-chassis design facilitates efficient heat dissipation, enabling stable operation in temperatures up to 60°C without external air conditioning.
-
Energy-Efficient Architecture: Utilizes advanced cathode technology to reduce power consumption by up to 30-50%, extending the operational lifespan of the display modules.
The Hikvision Outdoor LED Display series is designed to deliver high-impact visual communication in diverse outdoor environments. Whether for permanent large-scale advertising, outdoor sports stadiums, or high-traffic public information displays, these modules combine rugged reliability with exceptional image quality. Built upon professional-grade aluminum cabinetry, the system offers excellent structural integrity and heat dissipation, ensuring consistent performance even in challenging climate conditions.
The modules support advanced features such as 16-bit grey levels and high refresh rates (up to 3840 Hz), eliminating motion blur and ensuring smooth, color-accurate visuals. With modular front and rear maintenance options, serviceability is streamlined, reducing downtime and operational costs. Supporting a wide range of pixel pitches, the Hikvision outdoor series provides the flexibility to build high-resolution video walls that stand out and perform reliably 24/7.
| Feature | Specification |
| Protection Level | IP65 (Front) / IP66 (Rear) |
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch | Available from P2.5 to P10 (Series Dependent) |
| Brightness | Up to 6000 cd/m² (Model Dependent) |
| Refresh Rate | Up to 3840 Hz |
| Grey Level | Up to 16-bit |
| Viewing Angle | ~140° (H) / 120°–140° (V) |
| Operating Temperature | -40 °C to +60 °C |
| Input Voltage | 100–240 VAC ± 15% |
| Maintenance Method | Front and/or Rear Maintenance |
| Cabinet Material | Die-cast Aluminum / Aluminum Profile |
| Lifespan | ~100,000 Hours |
ACCESSORIES / SPARE PARTS:
-
LED Controllers: Hikvision Video Controllers / Receiving Cards (e.g., DT60C series, Novastar-compatible units).
-
Power Units: Official spare power supply units for outdoor cabinets.
-
Cabling: Aviation-grade power jumper cables, signal jumper cables (RJ45).
-
Mounting Hardware: Fixed-mount installation brackets, 90° corner-cut mounting kits.
-
Tools: Magnetic module extraction/maintenance tool.
